Complete MiSTer PLUS JAMMA 1.5TB

Description

This board is an improved version of official analog IO. The IO board includes a RGB888 R-2R DAC with JAMMA video and audio output, RTC, OLED screen, jack audio input (for tape loading), DB9 joystick, leds and push buttons.

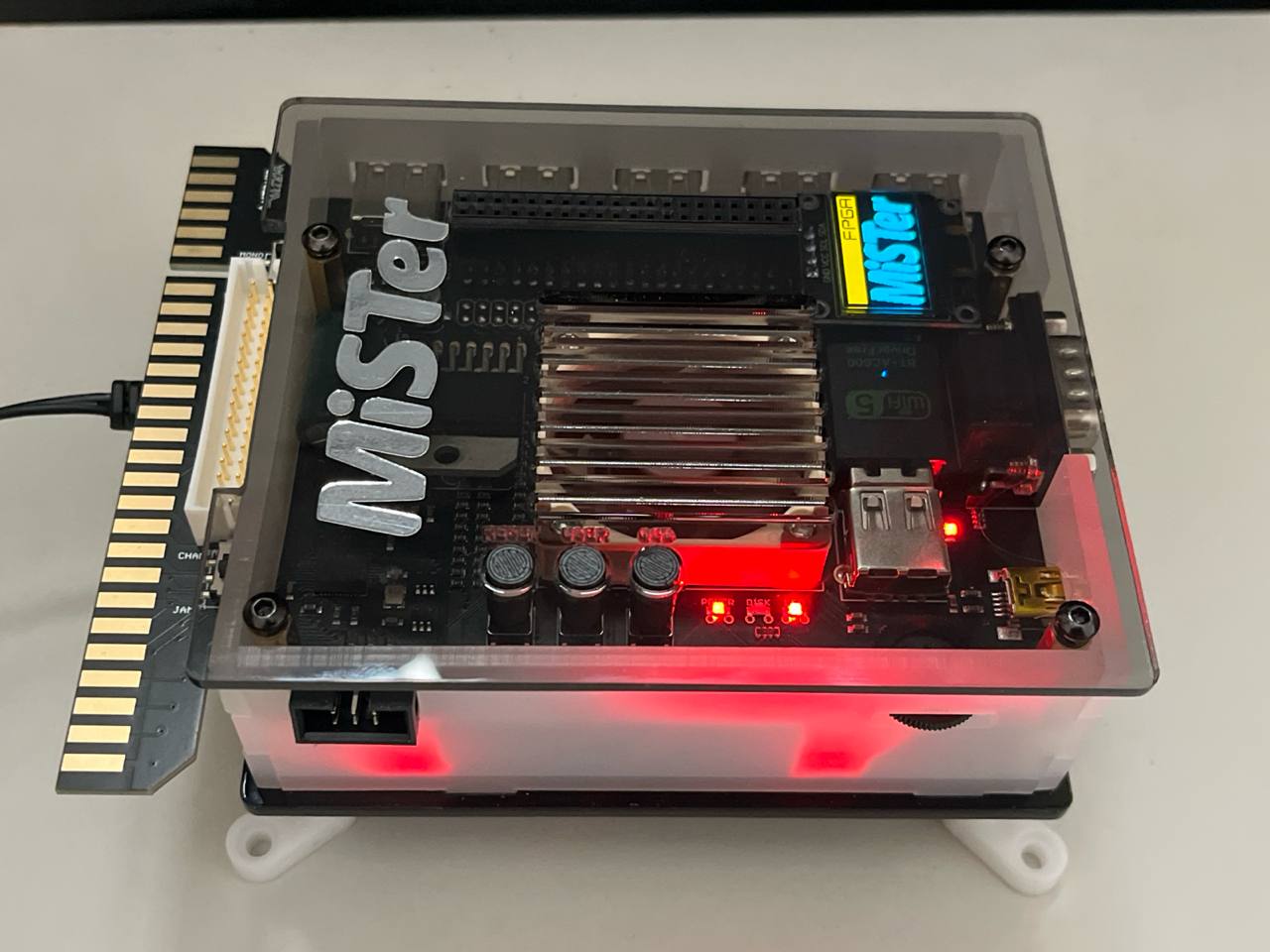

The MiSTer is sold completely assembled, like in the pictures. SD is installed with update_all script so system is ready to go. It’s SNAC compatible with official cores, but if you want better support (OSD and non native cores) I recommend use this repository:

https://github.com/MiSTer-DB9

Full mappings available here: https://github.com/MiSTer-DB9/JAMMA_MiSTer

Included on this package:

• 100% core compatibility with MiSTer
• QMTECH 5CSEMA6U23 board (for HDMI output)
• 112dB SNR audio DAC (PCM5122)
• RGB888 video DAC
• internal SDRAM 128MB (up to 160MHz in memtest)
• IO board (for analog video and audio)
• 6mm heatsink and 40x40mm RGB LED FAN (Hydraulic)
• Full acrylic case
• USB hub with 6 ports (one internal)
• Optional BT+wifi adapter on internal USB
• Second USER IO port
• RTC with battery
• OLED screen for display logo cores
• DB9 joystick port, protected for SNAC
• microSD card, 1.5TB with all installed (Sandisk Ultra)
• Size: 115x80x43mm. Weight: 283gr
