Complete MiSTer MINI

Description

This board is an improved version of official analog IO. The IO board includes a RGB888 R-2R DAC with VGA output, 112dB SNR audio DAC output (analog and optical), jack audio input (for tape loading), DB9 joystick, leds and push buttons.

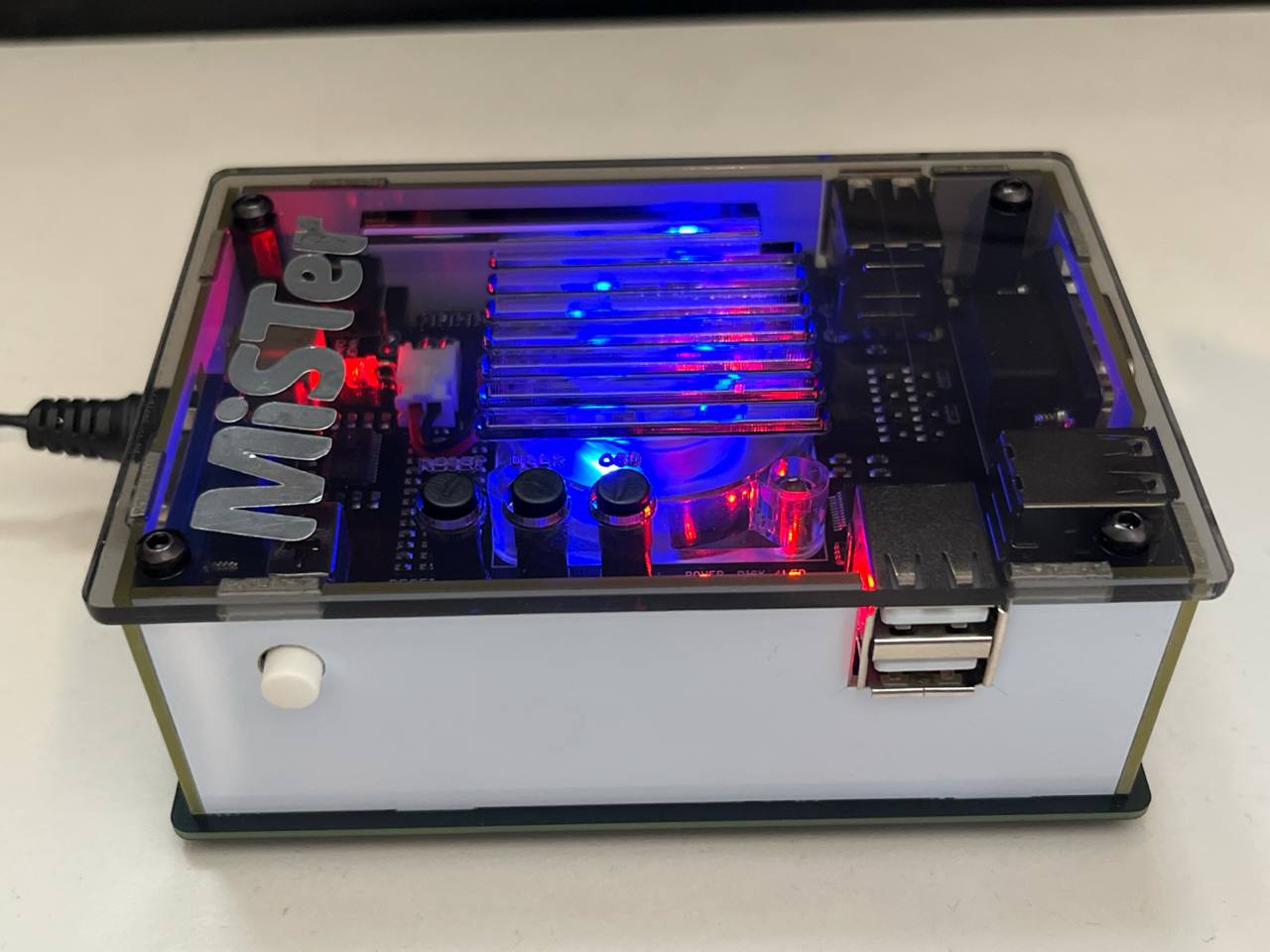

The MiSTer is sold completely assembled, like in the pictures. SD is installed with update_all script so system is ready to go. It’s SNAC compatible with official cores, but if you want better support (OSD and non native cores) I recommend use this repository:

https://github.com/MiSTer-DB9

Included on this package:

• DE10 nano board (for HDMI output)
• 112dB SNR audio DAC (PCM5122)
• RGB888 video DAC
• SDRAM 128MB 4C
• Jack audio input for tape loading
• IO board (for VGA and Scart output)
• 6mm heatsink and 40x40mm RGB LED FAN (Hydraulic)
• 3D printed case
• USB hub with 6 ports
• DB9 joystick port, protected for SNAC
• 4A AC power supply (EU plug)*. This allows devices as mechanical HDDs.
• microSD card, 8GB with all cores installed
• SPDIF optical through 3.5mm connector
• ON/OFF switch
• Size: 115x80x43mm. Weight: 283gr

*For countries outside EU I include de10 nano power supply with US plug
