Jamma converter

Description

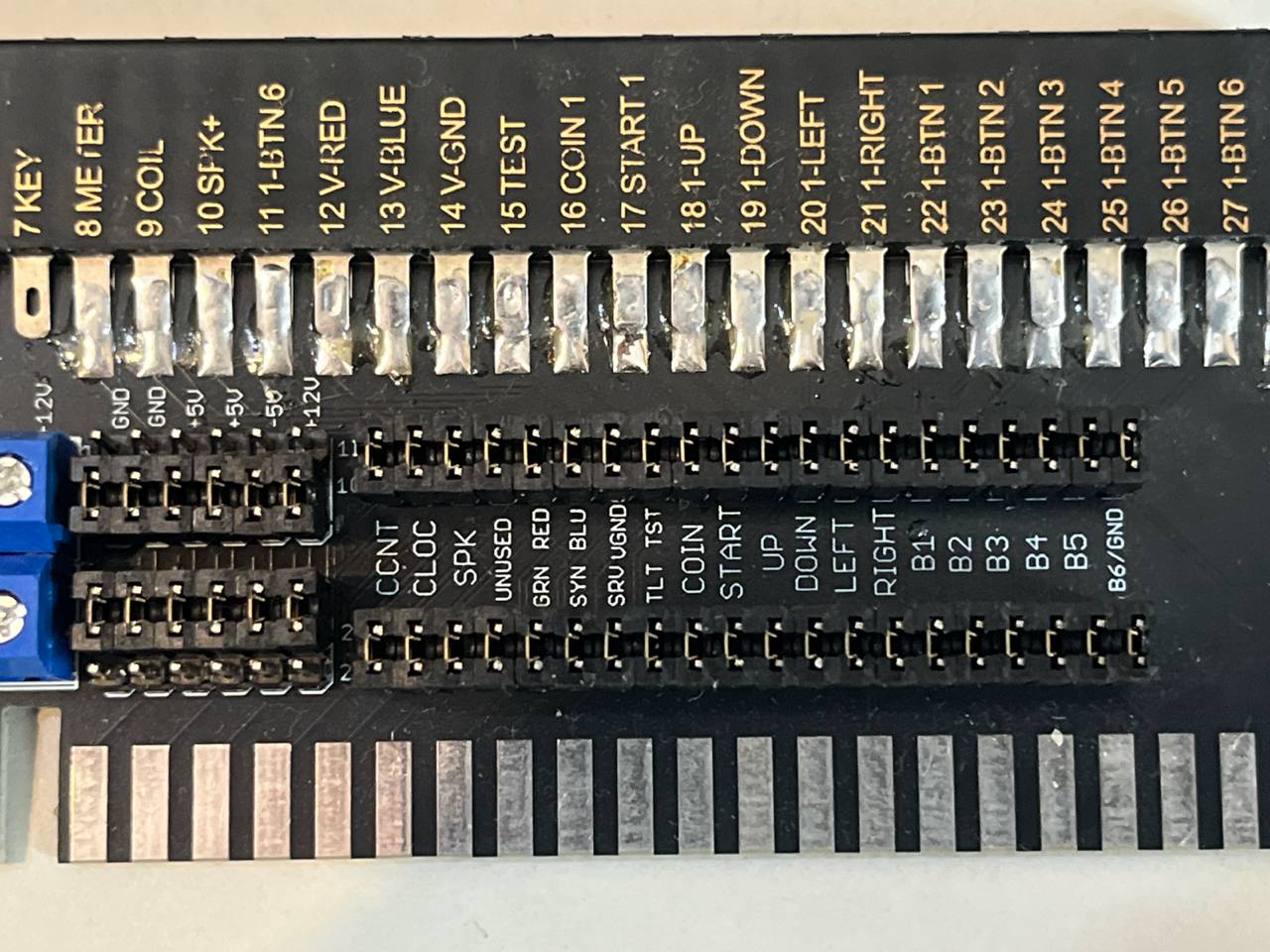

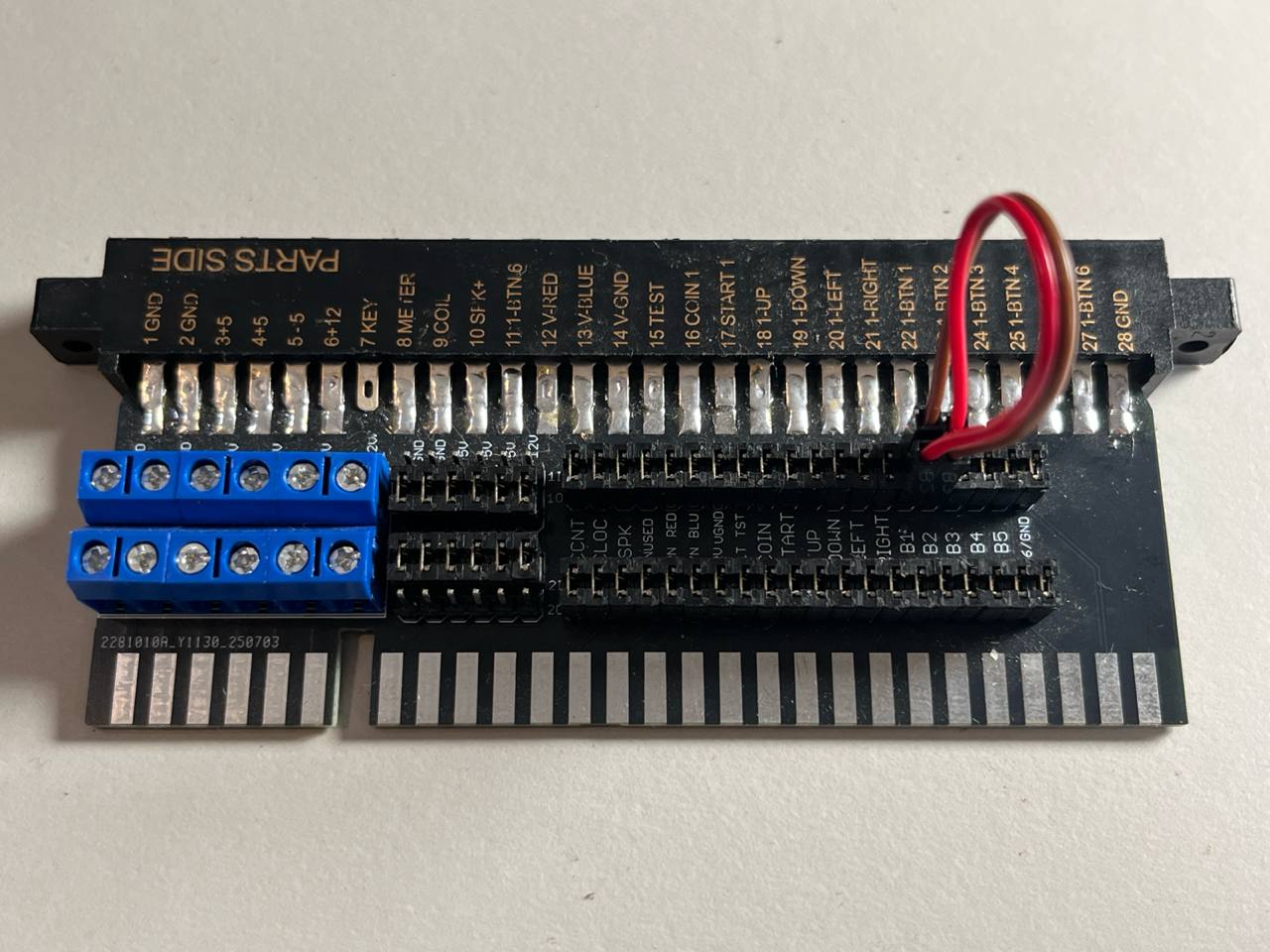

This device allows converts non-JAMMA boards to JAMMA cabinets. By default it uses jumper caps, so the mode is transparent. It acts as JAMMA extender. But if you remove jumper caps and replace with jumper wires, you can do as many permutations as you want, so it converts from literally every game board with the same 28pin connector than JAMMA. In the latest picture I have put an example of how interchange P1 button1 with P1 button2. It has 6+6 screw terminals if you want make power pin swaps with thicker cables. The product includes 52 jumper caps installed and 10 jumper wires like in the pictures.
