Octopod

Description

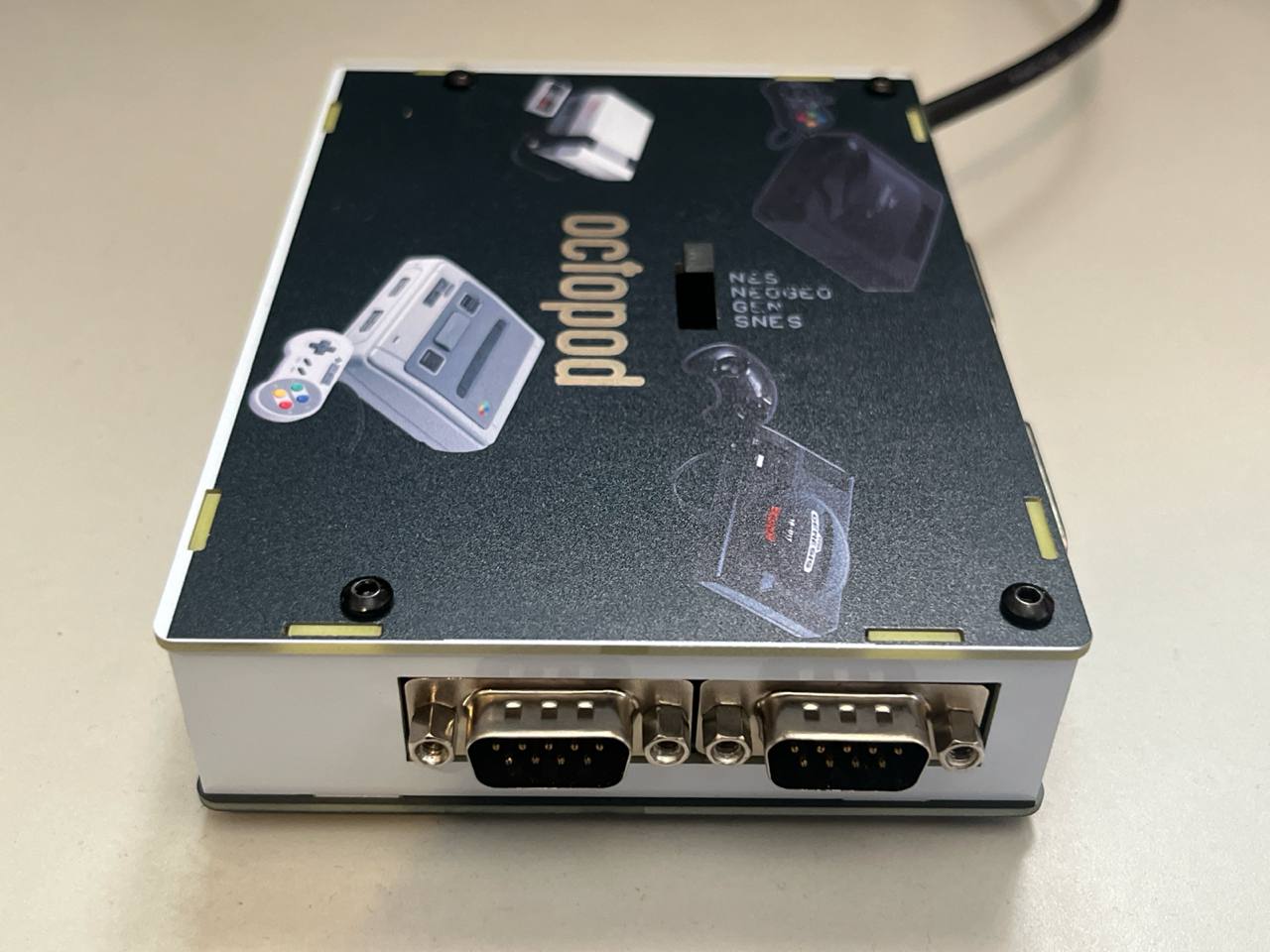

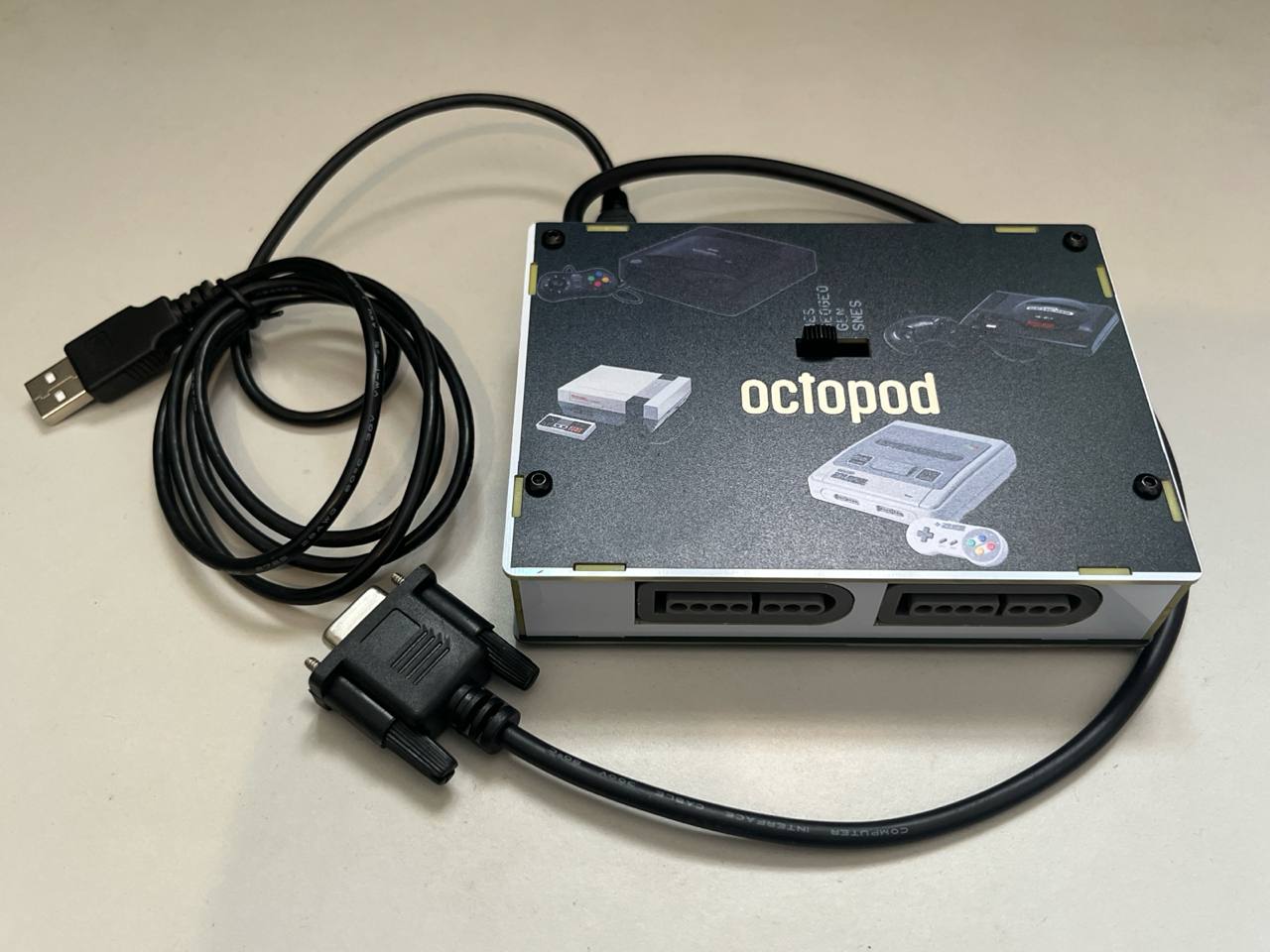

This Octopod has dual functionality. If you connect to DB9 port you have SNAC connection with zero lag. Also you can connect via USB to the MiSTer or to a PC. Never connect DB9 and USB at the same time. Based on daemonbite firmware, modified by GAsinPrieto and tested by Oskarz and Paco. Firmware can be upgraded from here. All controller ports can be plugged in at the same time, but only the 2 ports selected by the top switch will work in tandem.

Through USB you can use this in other devices as laptops, computers, consoles… because it’s a standard HID controller.

List of connectors:

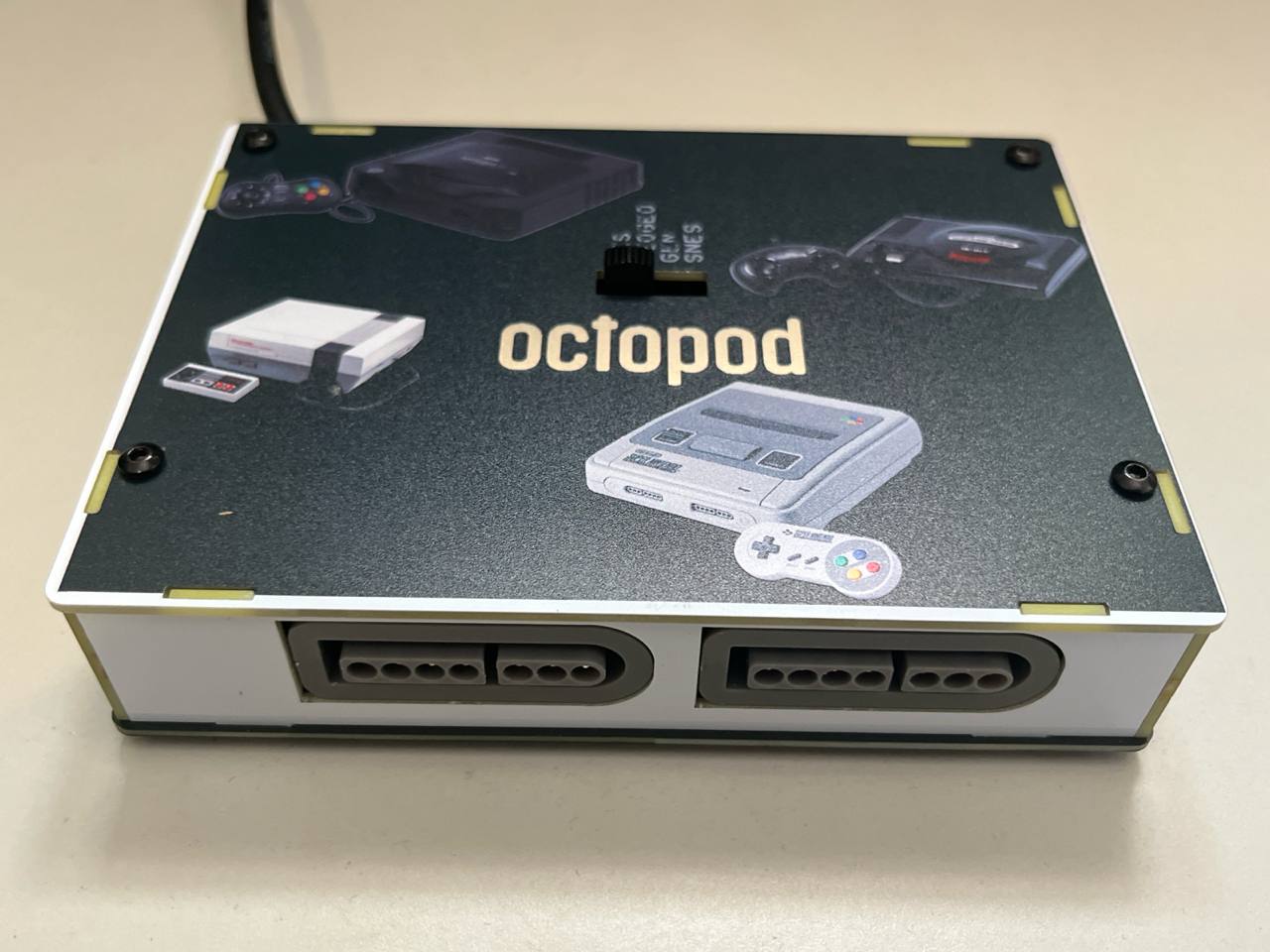

• Two Genesis/Megadrive
• Two NeoGeo
• Two SNES

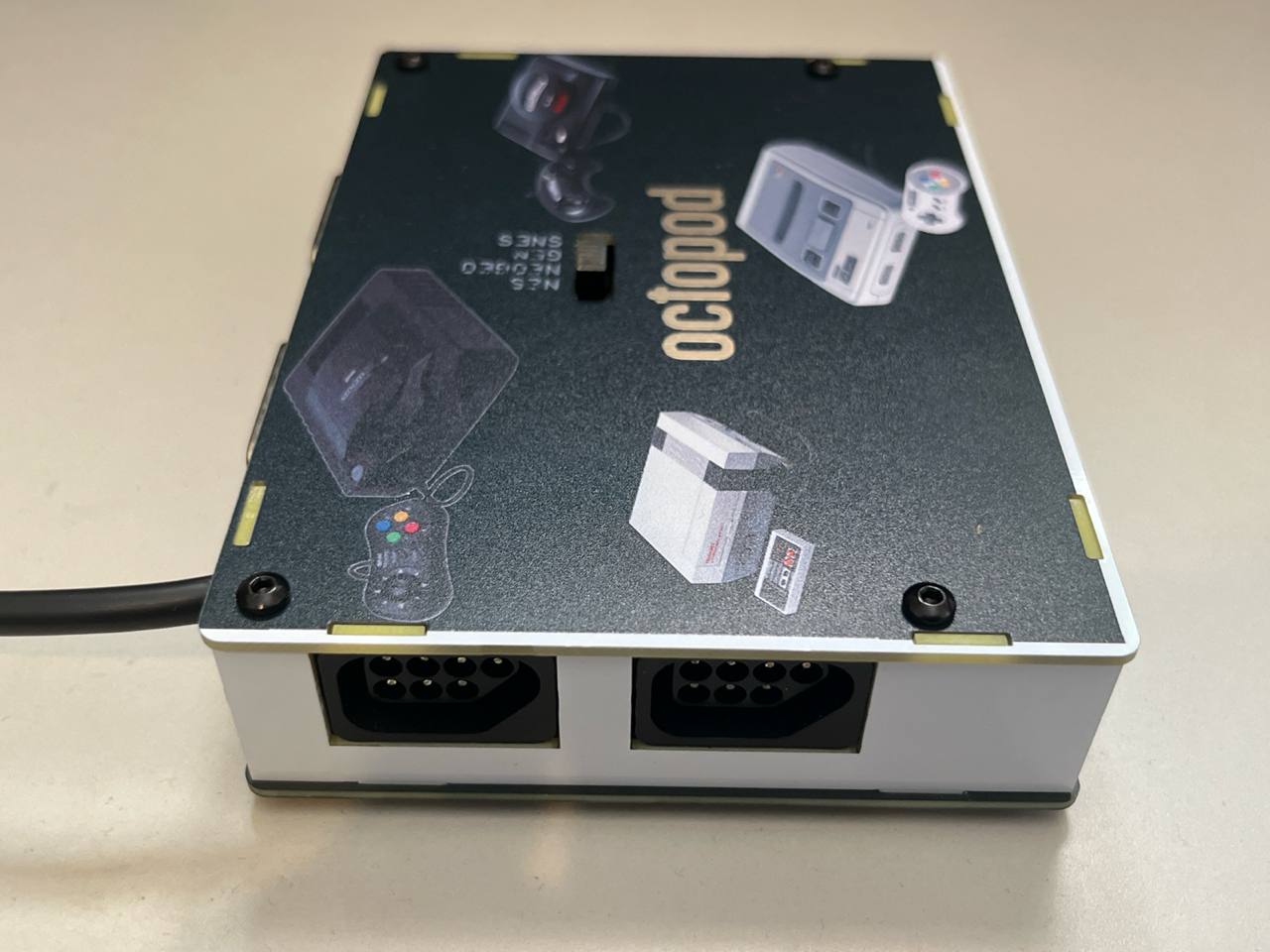

• Two NES

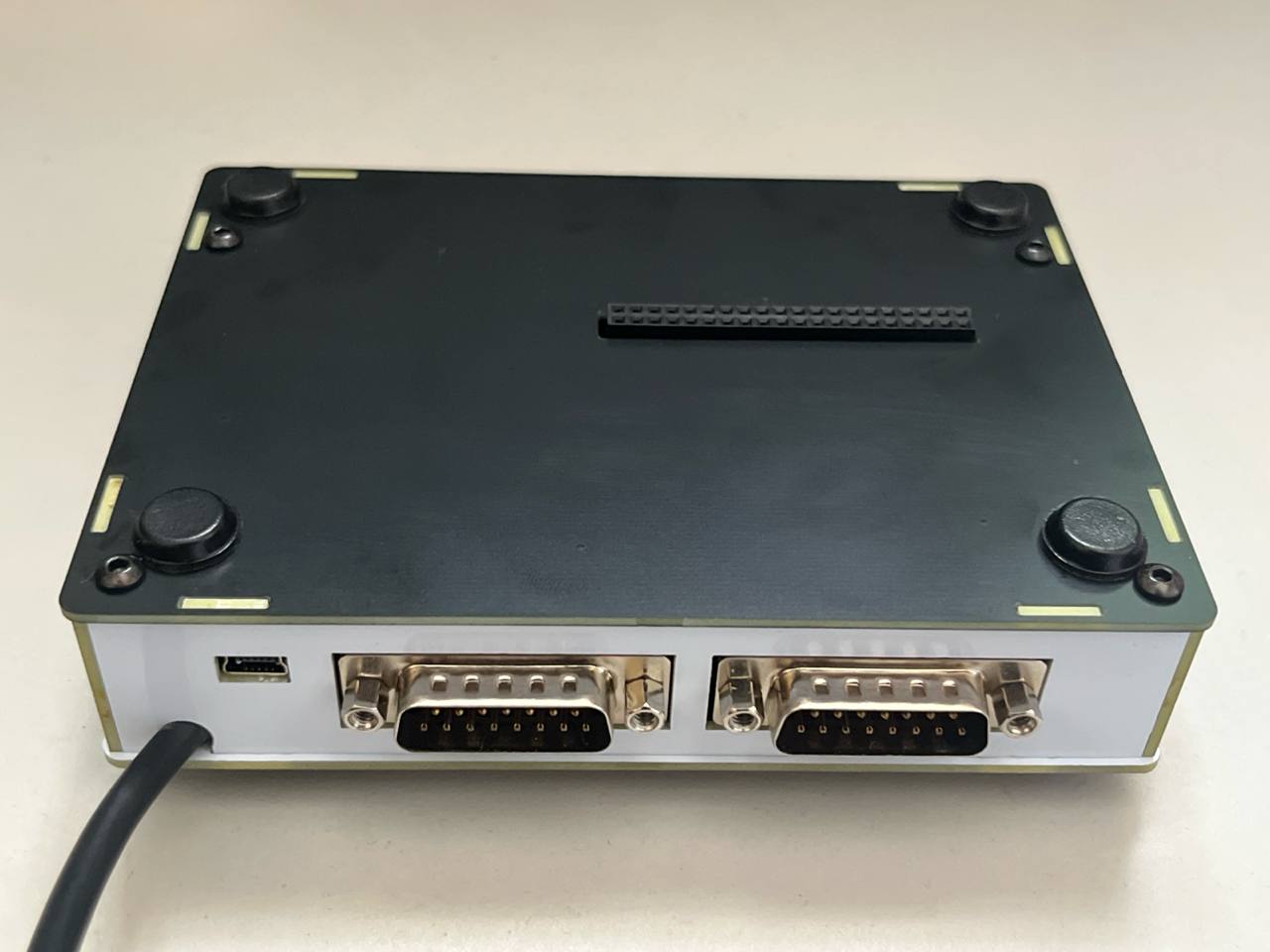

• One 2×20 female to connect pi zero 2w for MT32pi functionallity

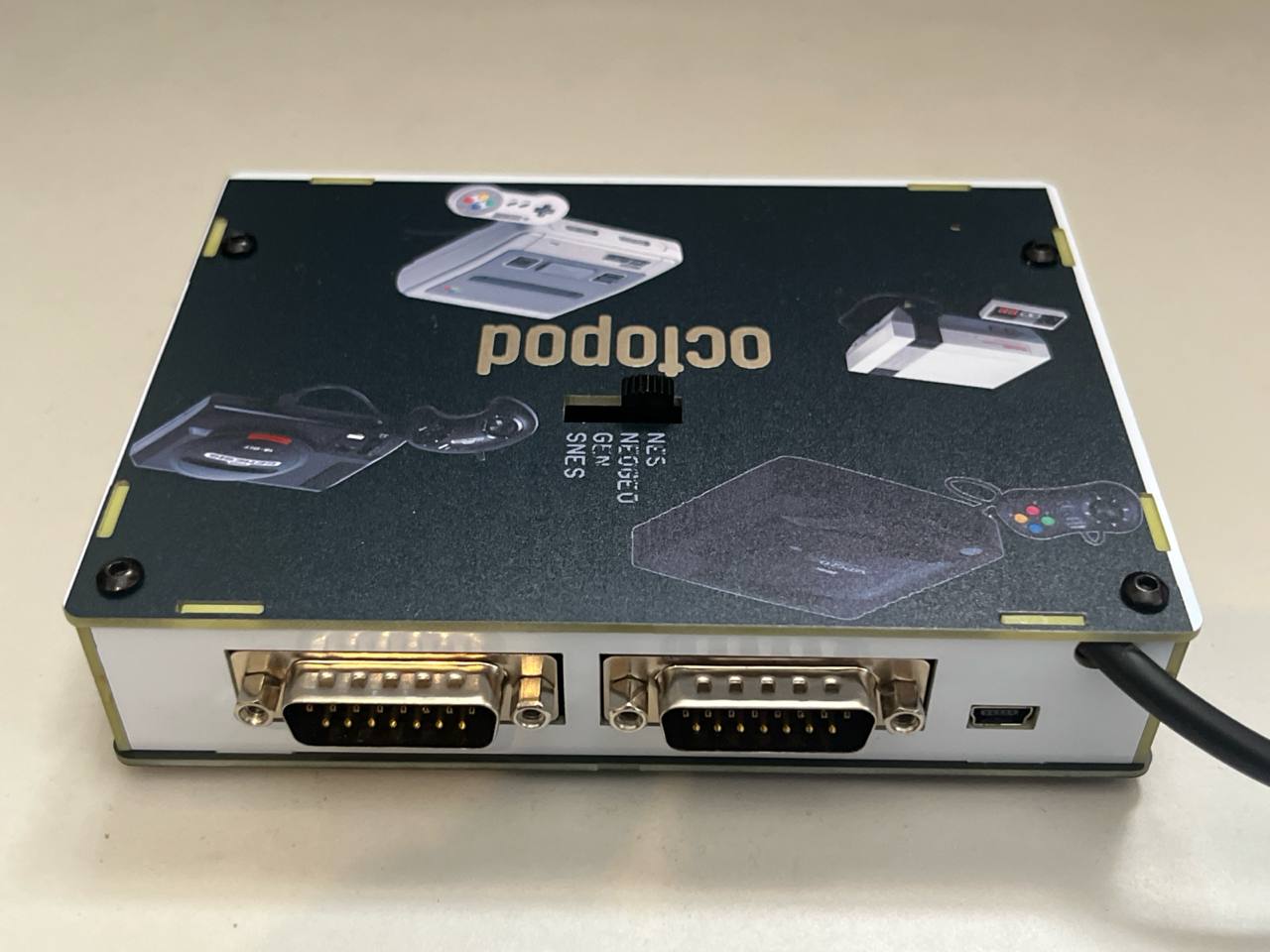

• MiniUSB or DB9 (don’t use at same time) to connect to the MiSTer

It has mt32pi functionality in the bottom side. Just select SNES on the switch without SNES controller connected and put a μmt32π, raspberry pi zero 2w or picoSynth in the bottom side. Connect through DB9 port to the MiSTer with a mt32pi supported core. Raspberry Pi not included.
