IOUSB MiSTer SNAC JAMMA

Description

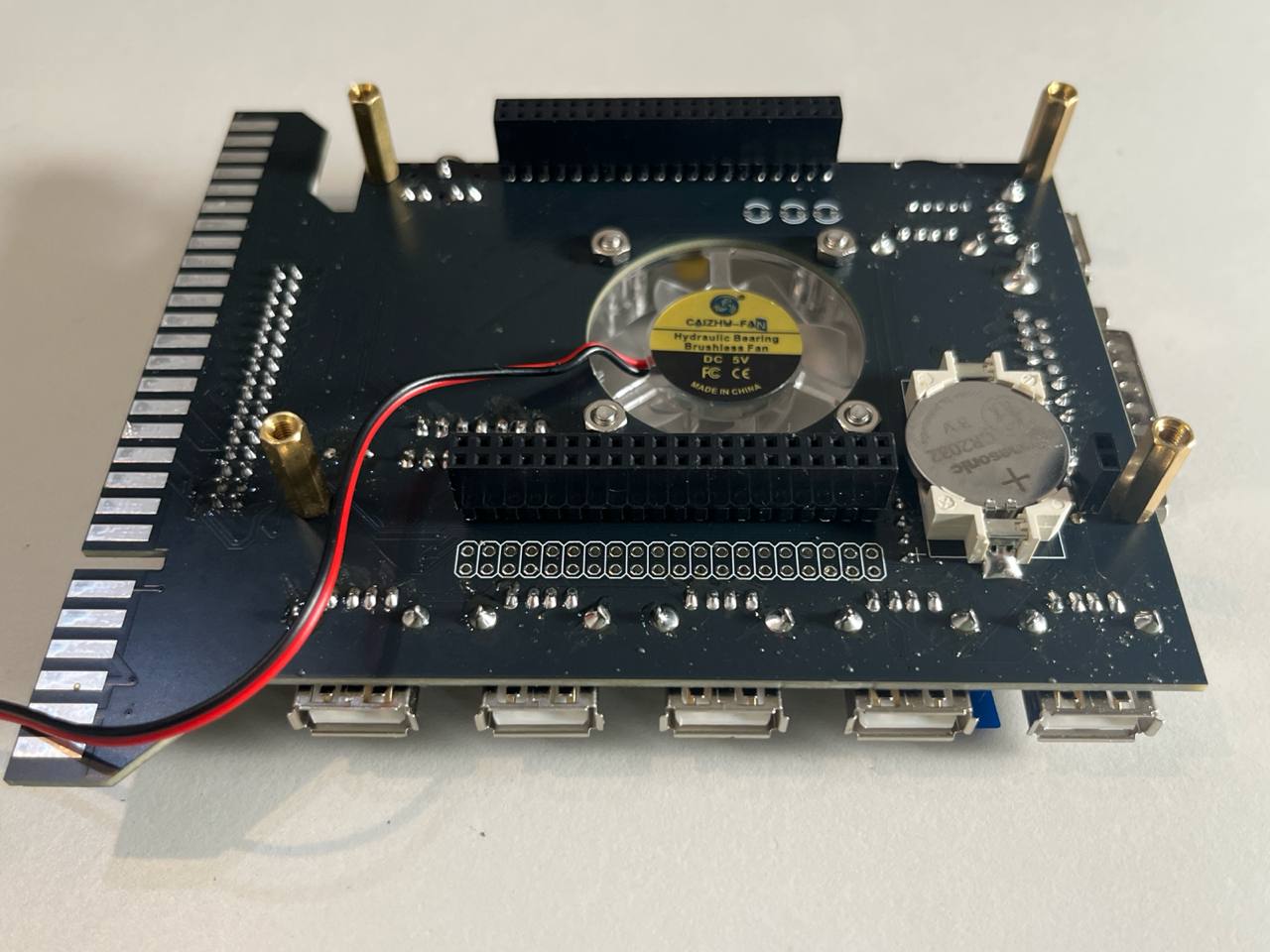

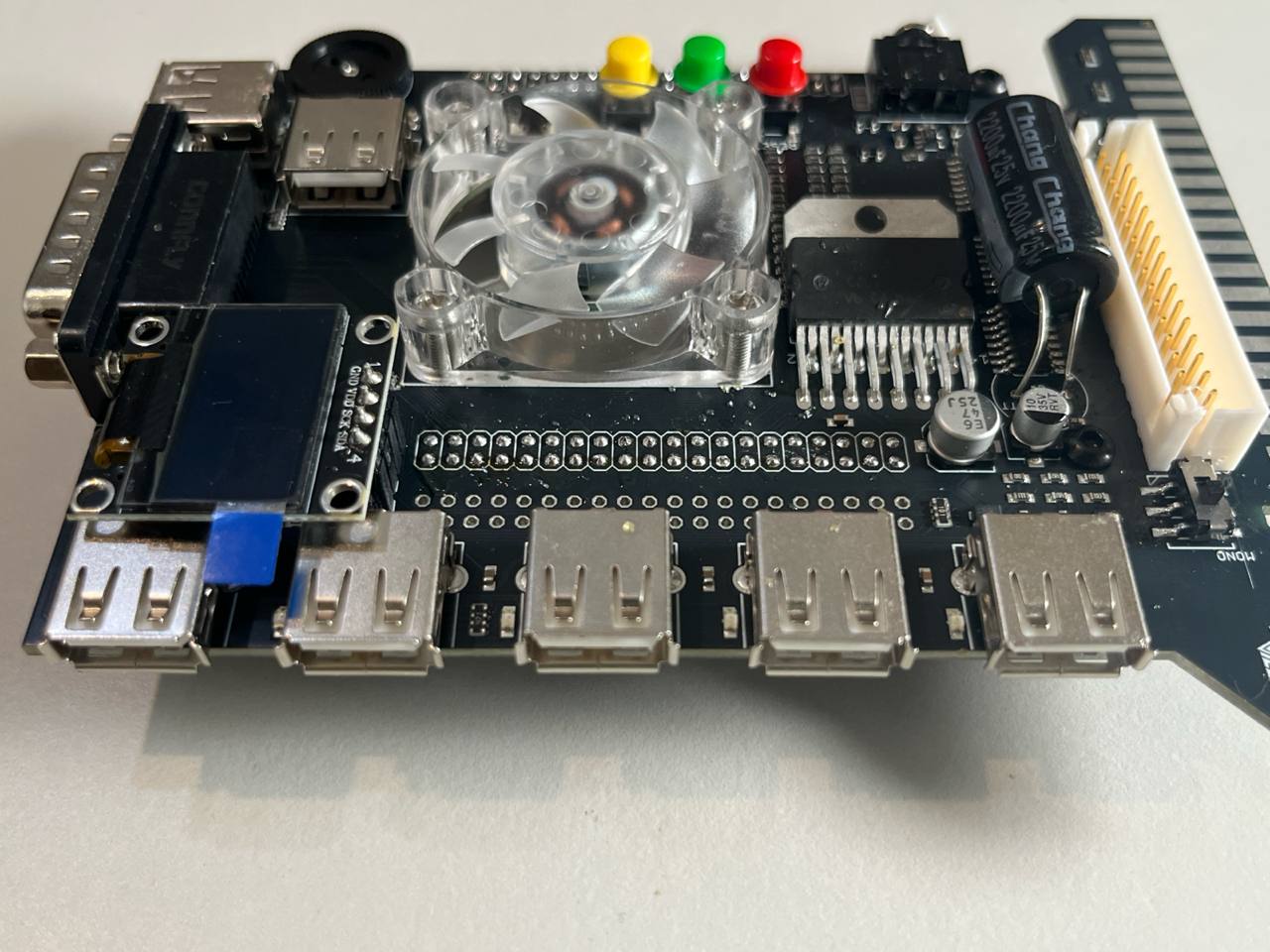

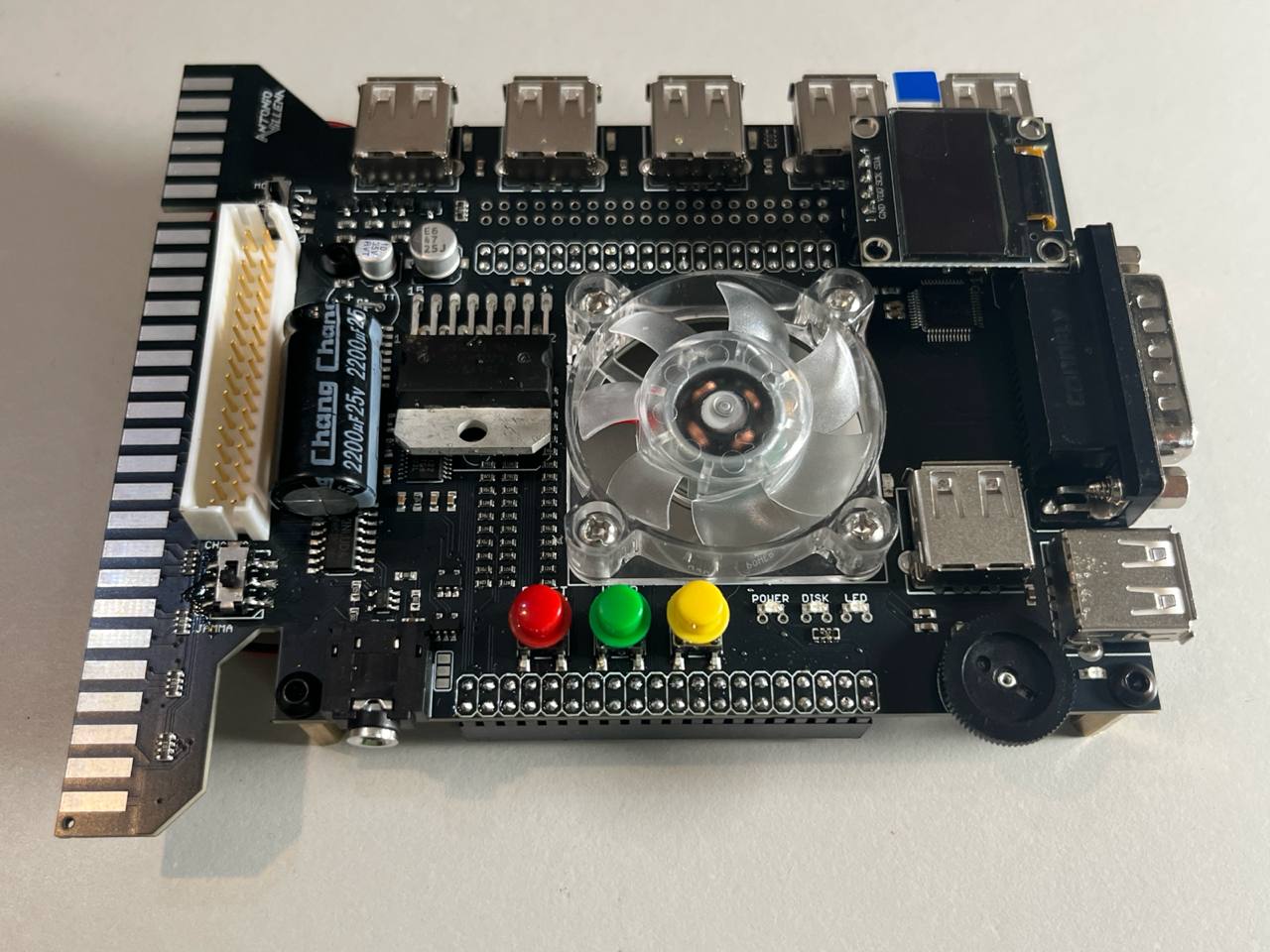

This kit doesn’t include QMTECH 5CSEMA6U23 board. This kit includes:

• 100% core compatibility with MiSTer
• For QMTECH FPGA board with built-in SDRAM
• IO board (for analog video and audio)
• 112dB SNR audio DAC (PCM5122)
• RGB888 video DAC
• USB hub with 7 ports (one internal)
• RTC with battery
• Jack audio input for tape loading
• OLED screen for display logo cores

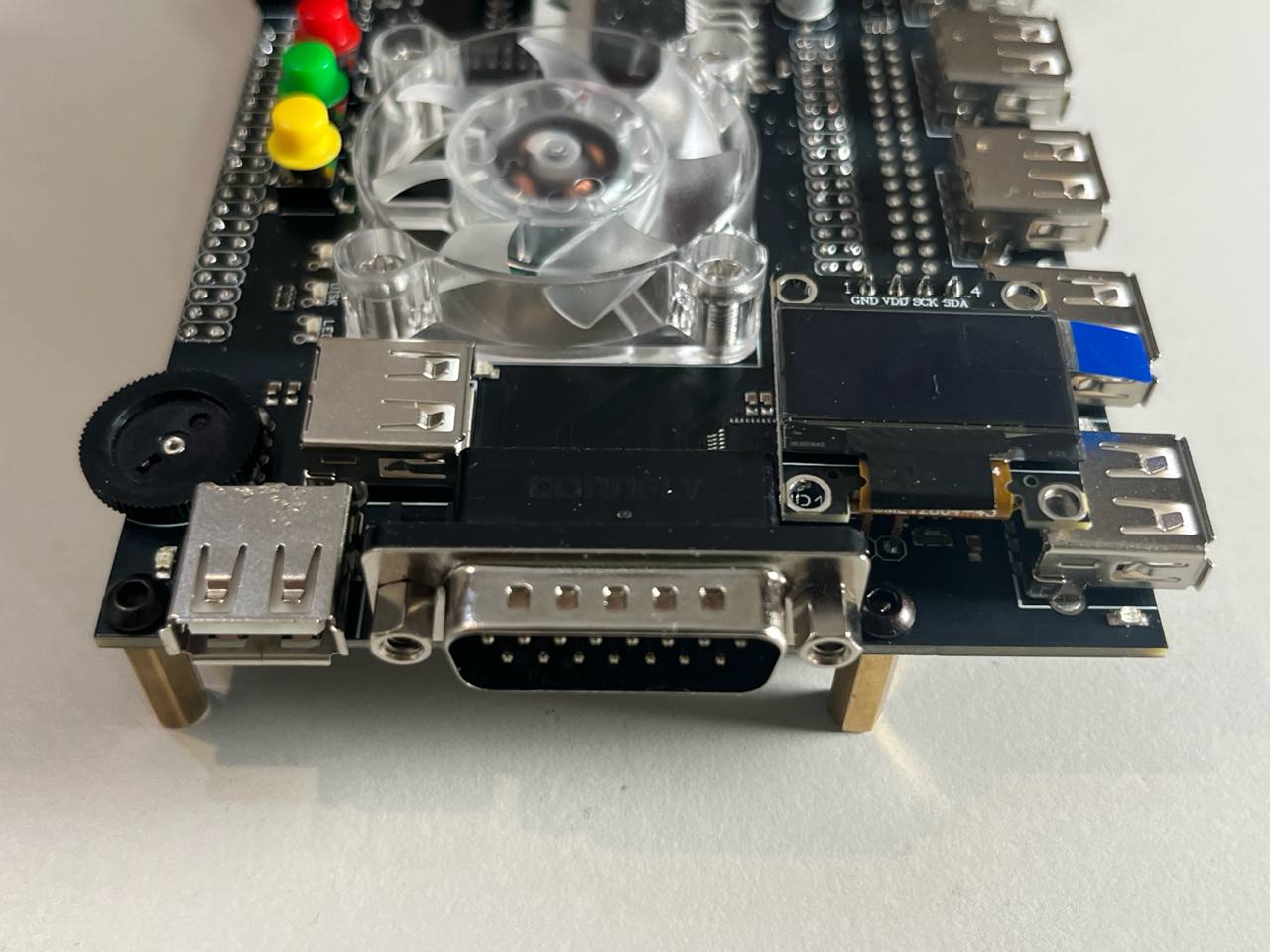

• DB15 joystick port, NeoGeo compatible
• RGB Fan cooler, ball bearing

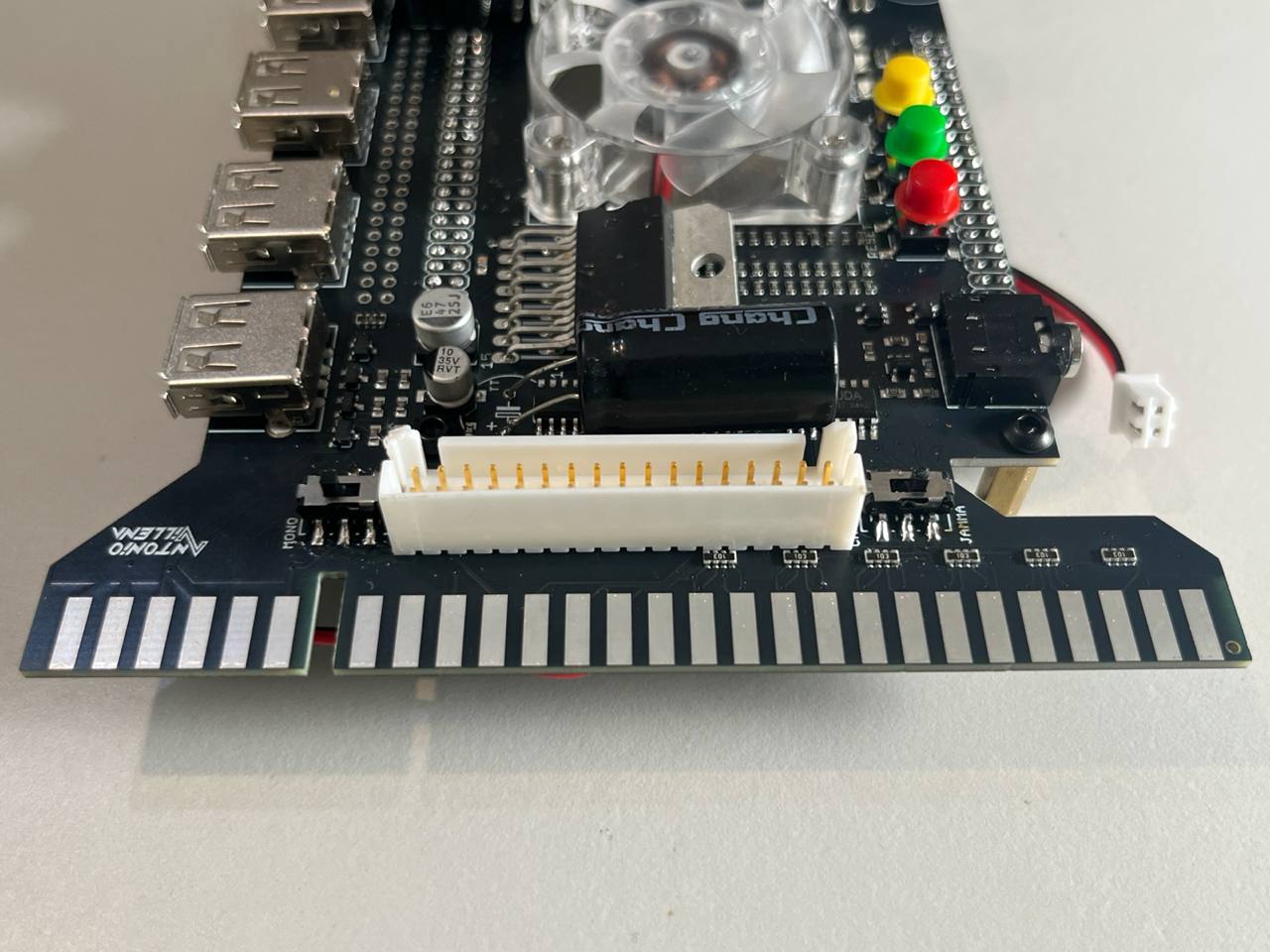

• JAMMA connector
• It’s compatible with all cores with SNAC DB15 support. For non-arcade cores use the cores of the db9 project
• No input lag. Reading 24bits at 4Mhz takes 6μs to read. This is about 1000 times faster than USB does
